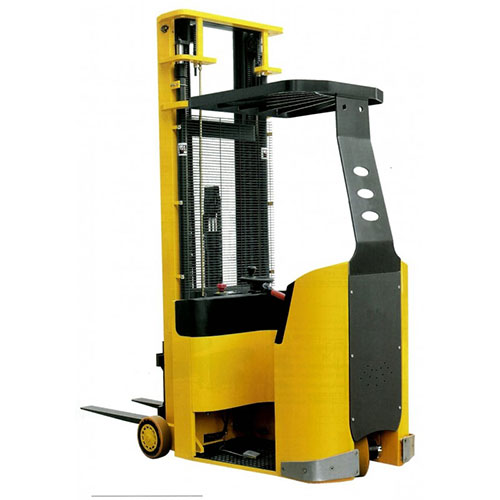

NARRPW AISLE LIFT TRUCK

MODEL                    : SBC 10BZ
CAPACITY               :  1000 KG.
LIFT HEIGHT         : 5000 MM.

Structural

• Advanced AC control system with MOSFET delivers smooth driving speed control for precise.
• Small turning radius,easy and smart to operate.
• Lean-on compartment offer comfortableand safe driving position,reducing operator’s fatigue.
• With regenerative braking system for driving and electronic braking system for parking.
• Low battery Protection setting prolongs service life in reversing mode and reduce the brake pedal using and reduce operatot efforts.
• With deadman switch on floor to cut off the power when operator leave the from cab.
• Lifting cylinders on the both of mast provides best visibility.


Safety and Efficiency

• AC frequency conversion traction motor: compact structure, good performance, regenerative braking and easy maintenance.
• The forks with tilting system easy for loading and stacker.

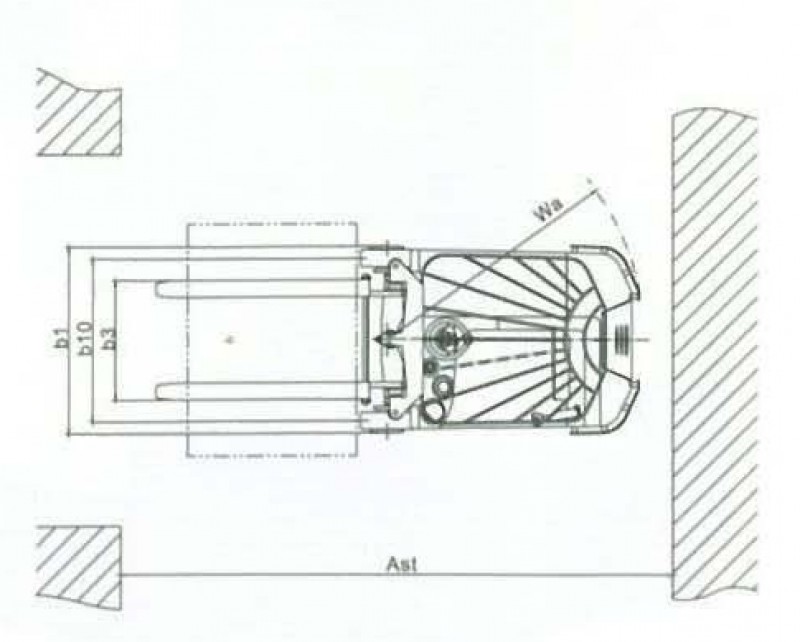

• The min. turning radius is 1560, which is fit for using in different nerrow space.
• High Storage battery ensures strong and long-lasting power.
• Meter with BDI w/interrupt, prolonging the battery’s using time.
• The braking system combines magnetic brake and regenerative break, greatly prolongs the using lift of friction plate.
• With emergency stop switch and electricity lock button, and multi-valve controlling levers, ergonomic for operation.
• The adjustable regulator valve can adjust the lowing speed of the masts.


Easy Maintenance

• Uses magnet suction for battery cover closing, no screw which is easy for installation and maintenance.
• AC controlling system with sensitive reaction, low noise, less maintenance and strong control ability of the speed.

Batteries

• Standard
• Model SBC 10BZ : 24VDC,360 Ah./5Hr.
• Battery weight :  355 Kg.

Optional Equipment

1. Work lights
2. Password acess code
3. Built-in charger
4. EPS-electric steering system
