• Standing drive motor system easy for maintenance.
• Equipped with a load-backrest( different height is avaiable ).
• The lifting height reaches 135mm, which provides better passing ability.
• Combined balance wheels increase steadiness,preventing the truck from being rocked from side to side.
• The balance wheel is detachable, it is convenient to maintain.
• The side door of battery is conveniently to be replaced and service .

• The truck features a smooth running, strong load capacity and excellent climbing ability, and the truck bodyand wheels are durable and reliable.
• Side-standing operation and equippedwith safety handle bar provide safety.
• Power steering system (EPS) ensures effortlessand highly efficient maneuver ability.

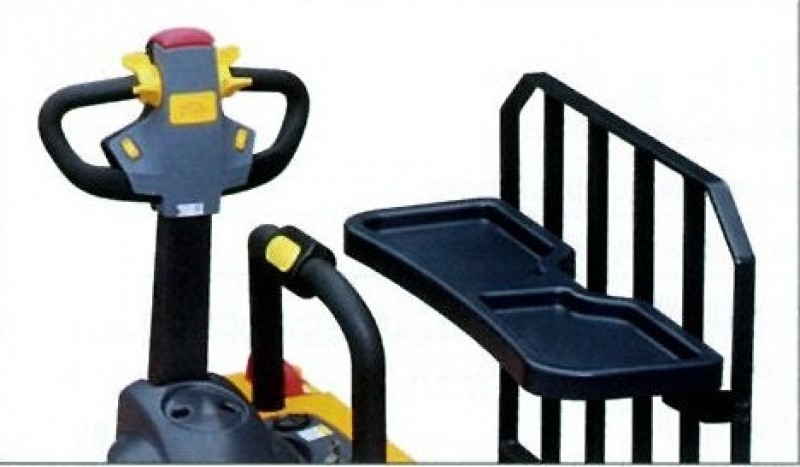

• Safety armrest equipped with operating switch design allows control of lifting/lowering, slow running and the horn functions with either hands.
• High-capacity Battery (300-750Ah) and high-power Drive Motorprovides strong power and ensures lasting runtime.
• The advanced controlling system uses efficient micro computer MOS,drive motor is the AC adjustable-speed motor which provides long life and good speed adjusting performance, and is maintenance-free.
• AC- motor eliminates carbon brushes and has good starting performance of the ramp.
• The handle is equipped with an emergency reverse direction switch,which provides safer operation.
• Build-in pressure relief valve protects the truck from overloads, and increases the truck’s reliability.
• Emergency power disconnector.
• Turtle- shaped low speed switch.

• Low battery protection setting prolong the battery use time.
• CANbus technology reduces wiring complexity, making the line clear,orderly and easy to repair. And also increases the truck’s reliability.
• Hall-effect throttle control eliminates wear components and prolongs its use time.
• With reasonable design, the cover is reliable and easy to dismantle,
• which makes the maintenance of the electrical parts very easy.

Batteries

• Standard
• Model K9 25T : 24VDC,300 Ah./5Hr.
• Battery weight :  300 Kg.
• Model K9 30T : 24VDC,300 Ah./5Hr.
• Battery weight :  300 Kg.


Optional Equipment

1.  Work lights
2.  Password acess code
3.  Built-in charger
4.  EPS-electric steering system
