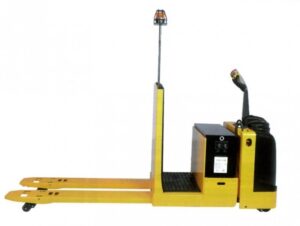

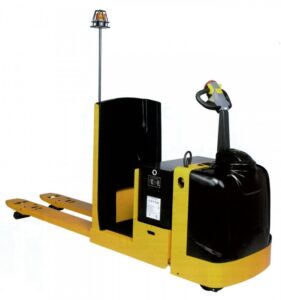

CENTRAL RIDE PALLET TRUCK

MODEL  : K9-30Q
CAPACITY : 3000 KG.
LIFT HEIGHT : 135 MM.

Advantages:

• Advanced electric power steering technology (EPS), can be flexible and comfortable steering, with automatic speed reduction functionwhen turning ,and in good feeling for driving and controlling.
• Stand on the platform with good cushioning,in line with ergonomic backrest design,making the worker more comfortable.
• Option for warning lights, on and off can be controlled, to be more secure.
• Easy & simple to operate, making handling operationsmore easier and efficient.
• With large capacity battery, and the battery can bequickly took out/ replaced from the side way, to meetthe high intensity of the handling operations.
• Powerful drive motor and control system, making the truck with strong momentum. Fully laden with 9Km/h maximum speed, fully laden with 10% climbing ability.
• Professional appearance design, is not only beautiful comfortable driving, wide vision. Platform withautomatic power off when operator is leaving,make it more security and reliability.
• The straight tappet with will not bend due to overloading, vibration shock occurs, the straight tappet length can be precise adjustment.
• Fork head fitted with double steel entry rollers, for smoothly moving into US pallets.
• Lifting height up to 135mm/5.3inch, the truck has better ability of pass through.

Batteries

• Standard
• Model K9 30Q : 24VDC,560 Ah./5Hr.
• Battery weight :  559 Kg.

Optional Equipment

• Work lights
• Fan
• Built-in charger
• Standing, the pedal with non-slipand shockproof function, Hip partwith reversible cushions whichcan reduce fatigue.Cuchion heightcan be adjusted according to thedriver’s height.
