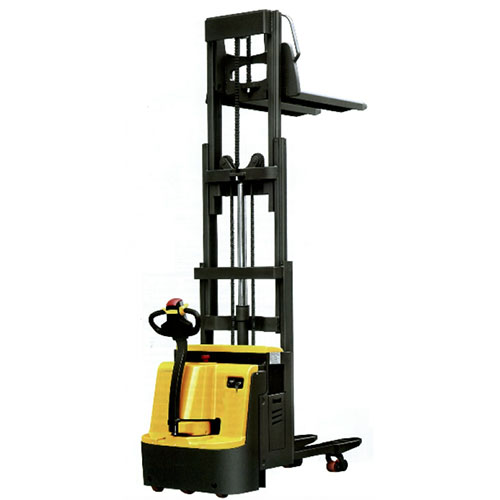

DOUBLE PALLET ELECTRIC

MODEL                    : K9-20S
CAPACITY               : 2000 KG.
LIFT HEIGHT         : 1600/2000/2500 MM.

Structural

• Vertical driving wheel offers small turning redius.
• The mast and the frame are dividable and exchange.
• Adjustable floating balance wheel is resistant to wear and stable.
• Sliding rail connects the moving part of the front and rear,makes lifting and lowing stably.


Safety and Efficiency

• Carry two pallets at one single time;
• the working performance is two times higher than normal trucks.
•  Lowest closed height Max. is 1.38M.
• The tiller head is equipped with an emergency reverse direction switch,which provides safer operation.
• Built-in pressure relief valve protects the truck from overload, and increases the truck’s safety.
• With stepless speed control and turtle low speed switch.


Easy Maintenance

• CANbus technology reduces wiring complexity, and increase the truck’s reliability.
• Hall-effect throttle control eliminates ware components and prolongs its use time.
• The balance wheel is detachable, convenient to maintain.
• Integral and modularized system makesthe maintenance of the electrical parts convenient.
