• The United States imported AC control system CURTIS with sensitive reaction。
• Imported multi-function liquid crystal instrument has intelligent display for fault code, battery status, forklift running information.
• AC driving motor: compact construe, high performance, regenerative braking .
• Top-ranking running speed, loading speed and grade ability. Running speed: unload 15km/h load 14km/h Lifting speed: unload 450mm/s load 290mm/s Grade ability: unload 20% load 15% AC motor with regenerative braking.
• Three running modes to choose according to different needs: low speed, moderate speed and high speed.
• Wet disk brake can make the forklift break stably,  ensures high durability and safety.

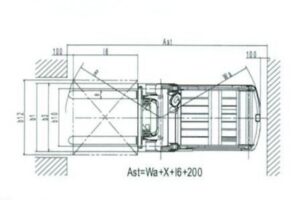

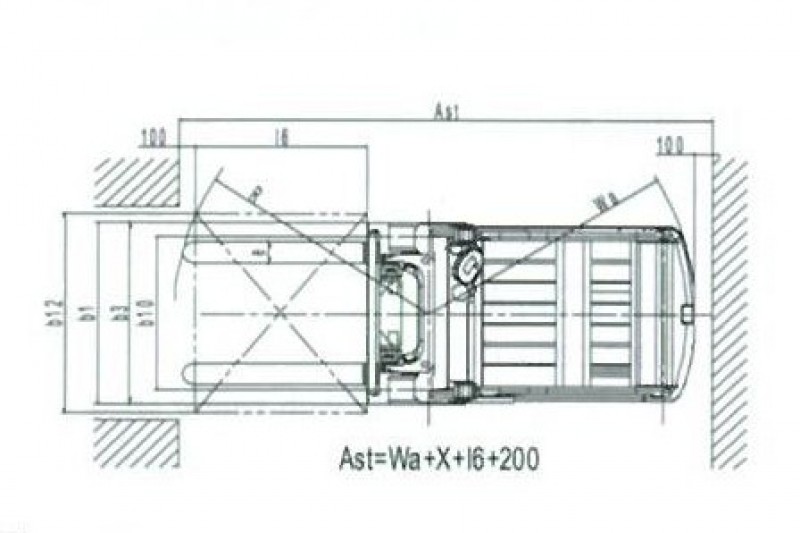

• Lateral turning radius is only 1552mm and minimum right angle stacking aisle is only 3220mm.

• With two step pedal easy to get into the driving cab.
• Adjustable steering wheel and the seat , the driver can adjust the position according to his need.
• Integrated light switch and steering signal rod.
• ABS instrument board in the driving-box is durable and beautiful.
• The design of the controlling lever position fit the Ergonomic principles which can reduce the driver’s fatigue.
• Better front vision The instrument is on the right side of the driving-box which provides better front vision , ensure safety operating.
• Emergency power cut off plug The plug is on the left side of the driver’s seat which is used for emergency stop.

Capacity
Model CSA 20-18    : 1,800  Kg.
Model CSA 20-20     : 2,000  Kg.

Batteries

• Standard
• Model CSA 20-18 : 48VDC,490 Ah./5Hr.
• Battery weight :  760 Kg.
• Model CSA 20-20 : 48VDC,560 Ah./5Hr.
• Battery weight :  800 Kg.

Optional Equipment

1. Work lights
2. Password acess code
3. Built-in charger
4. EPS-electric steering system
